Mini CNC Wood Engraving Machine

$350.00

  • Aluminium Profile Stable Construction
  • 3 – Axis Movable, Powerful Spindle Motor
  • Contains Quick start Guide of GRBL Software
  • 340x160x40mm Working Area, Meet Most DIY Needs
  • Engrave Wood, Plastic, Acrylic, PCB, or Similar Material
  • Can Not Engrave Metal, Steel, Aluminium

Out of stock

Category:

Product Features

  • Aluminium Profile Stable Construction
  • 3 – Axis Movable, Powerful Spindle Motor
  • Contains Quick start Guide of GRBL Software
  • 340x160x40mm Working Area, Meet Most DIY Needs
  • Engrave Wood, Plastic, Acrylic, PCB, or Similar Material
  • Can Not Engrave Metal, Steel, Aluminium

Package

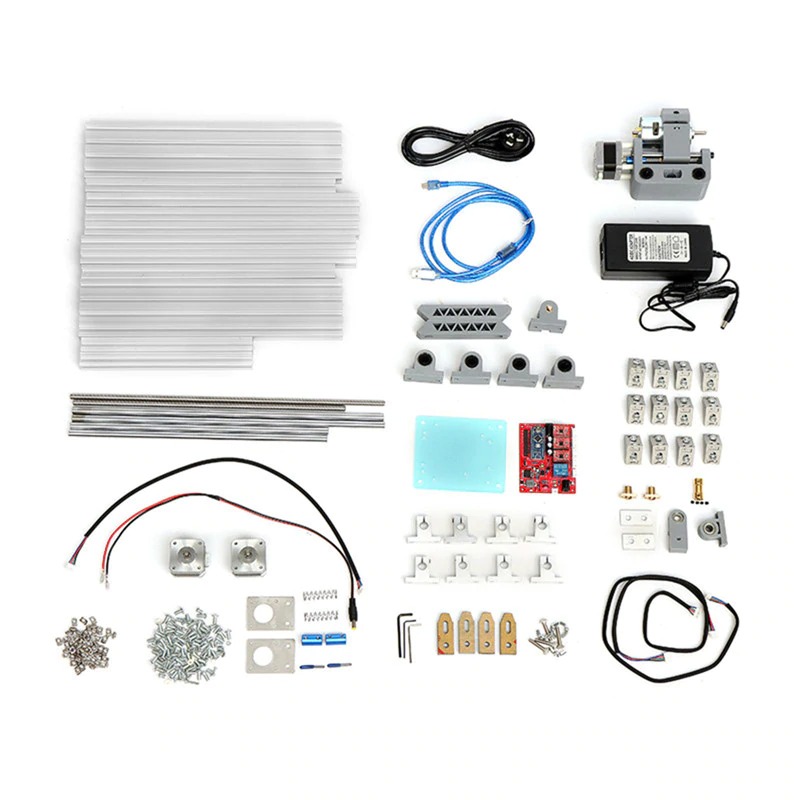

  • 1 x Wood Engraving Machine Full Set (Unassembled Delivery)

Notes:

  • Assembly requires a certain mechanical skill. All assembly components are included
  • This item contains the spindle motor, but no laser module
  • Please allow minor errors in measurements due to manual measurement
  • There may be a little colour difference between the real object and the picture
Model Name

Mini CNC3018 (Without Laser Module)

Model Number

RPDS0004

Frame Material

Aluminum Alloy

Colour

Silver

Table Area

Approx. 340x160mm

Working Area

Approx. 340x160x40mm

Control Software for Spindle

GRBL Control

Control Software for Laser

Lite fire System

Requirements

Windows XP SP3, Win7, Win8, Win10.

Adapter Plug

3-Pin AU Plug Adapter

Input Voltage

AC 110-240V 50/60Hz

 Adapter Output Voltage

DC 24V 4A

Interface

USB

Stepper Motor

42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.25N.m

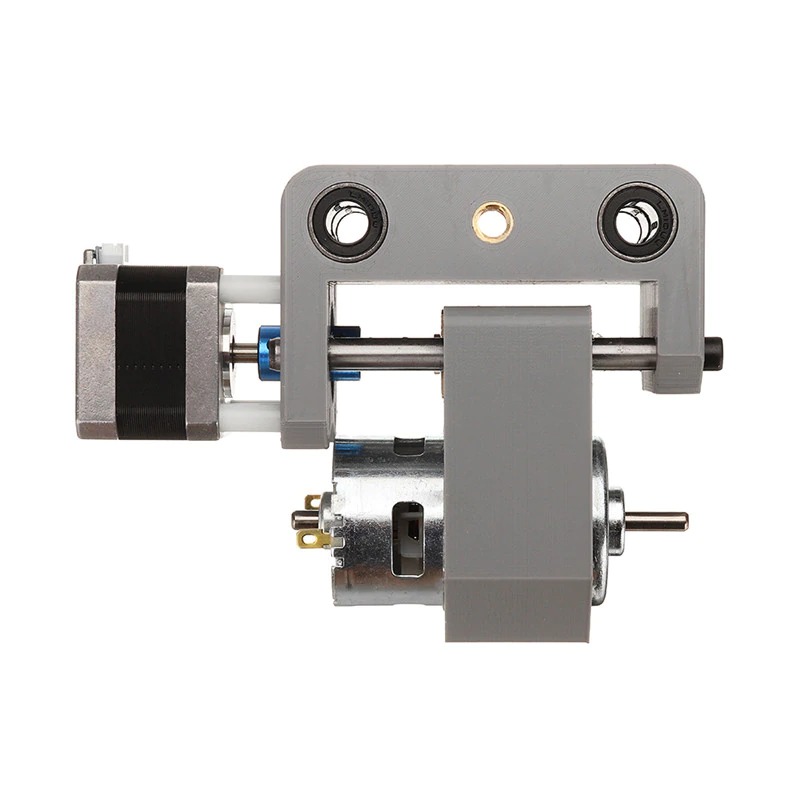

Spindle Motor

775 Spindle Motor (12-36V) 24V: 7000r/min, 36V: 9000r/min.
